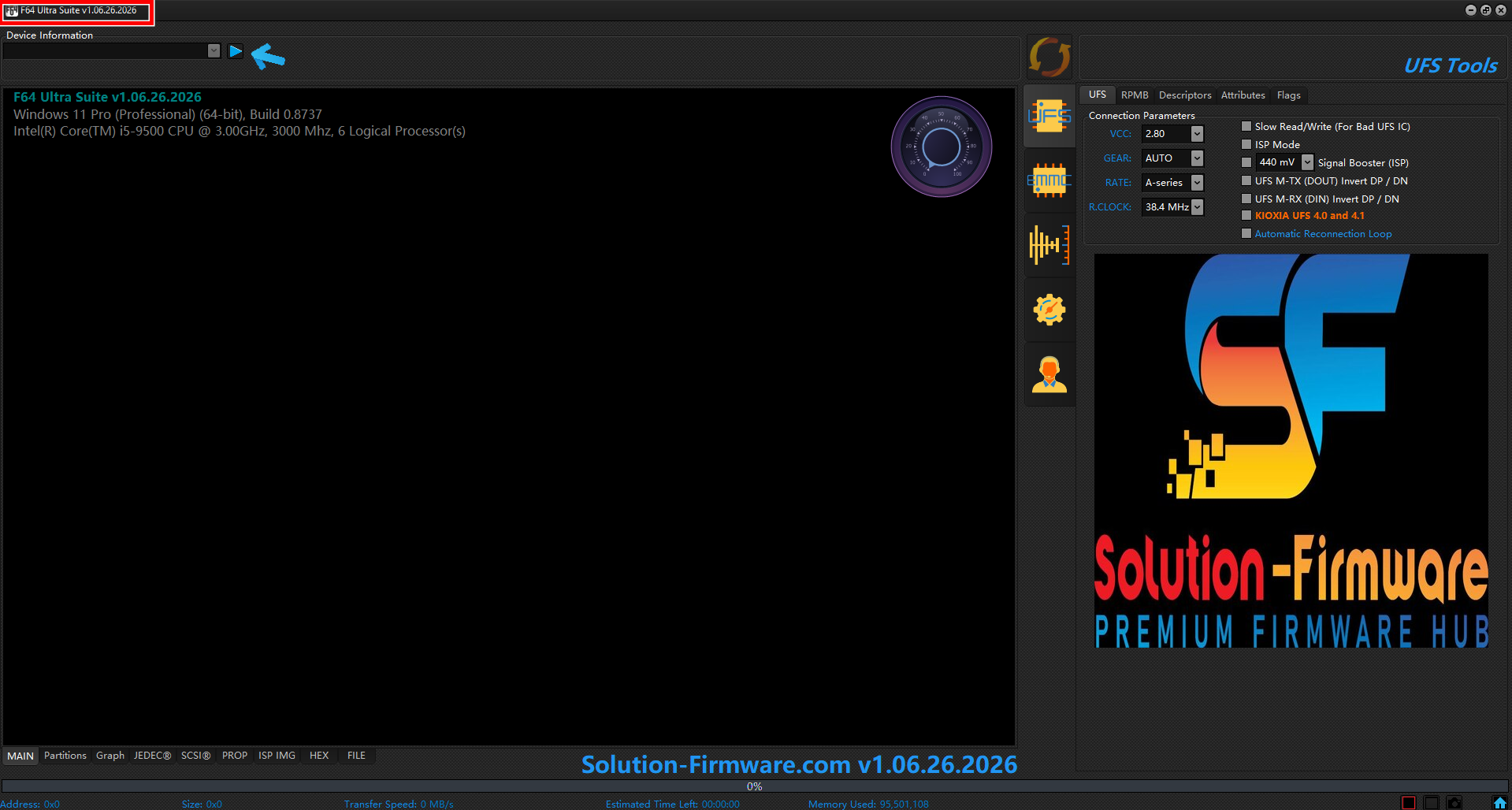

F64_V1.06.26.2026_Zip

???? F64 MIDYEAR UPDATE — 06.26.2026 ????

⚠️ Important Notice:
Box Firmware Update is highly recommended before using this updated software.

━━━━━━━━━━━━━━━━━━━━
???? Main Update Highlights
━━━━━━━━━━━━━━━━━━━━

✅ 1. KIOXIA / Toshiba FULL RPMB Reset/Clean
(Requires ASIC Firmware 05.17.2026)

⚠️ WARNING!!! This is a FULL RPMB Reset/Clean!!!

• RPMB Key will be GONE
• RPMB Data will be GONE
• RPMB Counter will be reset to 0
• Secure Write Protected Regions will be removed
• All data inside the UFS IC will be completely erased

❌ DO NOT USE THIS IF YOU DO NOT KNOW HOW TO USE IT

Supported UFS Versions:
✔️ KIOXIA UFS 4.1 — Supported
✔️ KIOXIA UFS 4.0 — Supported
✔️ KIOXIA UFS 3.1 — Supported
✔️ KIOXIA UFS 3.0 — Supported
⚠️ KIOXIA UFS 2.2 — Not Tested
✔️ KIOXIA UFS 2.1 — Supported
❌ KIOXIA UFS 2.0 — Not Supported

⚠️ If the UFS IC is OTP Locked, this procedure could break
the UFS IC total size due to bugs in Kioxia's UFS firmware.
If you still want to Reset/Clean an OTP locked UFS IC, you
need to hold the SHIFT key on your keyboard when you click
the "Erase RPMB Data" button.

You have been warned...

━━━━━━━━━━━━━━━━━━━━

✅ 2. Added support for WebOS partitions from eMMC-based LG TVs

Special thanks for test dumps:
???? Diễn Nguyễn
???? Basharat Khan
???? Emre Kaynar

━━━━━━━━━━━━━━━━━━━━

✅ 3. Full Pin UART Implemented
(Requires SoC Firmware 06.25.2026)

• Can now be used for recording bootlogs of newer phones

━━━━━━━━━━━━━━━━━━━━

✅ 4. Added New UART Pinouts
By Giovanni Lucas Da Paz (ISP Pinouts / UART)
Motorola Moto G75 5G XT2437-1 paros Pin Mapping UART.isp
MT6769V EMMC Pin Mapping UART.isp
POCO C75 - Redmi 14C lake Pin Mapping UART.isp
Pocophone X3 Pro Vayu Pin Mapping UART.isp
Redmi 12 fire Pin Mapping UART.isp
Samsung Galaxy A14 5G SM-A146M Pin Mapping UART.isp
Samsung Galaxy A16 5G SM-A166M Pin Mapping UART.isp
Samsung Galaxy A25 5G SM-A256B Pin Mapping UART.isp
Samsung Galaxy A36 5G SM-A366E Pin Mapping UART.isp
Samsung Galaxy A54 5G SM-A546E Pin Mapping UART.isp
Samsung Galaxy A56 5G SM-A566E Pin Mapping UART.isp
Samsung Galaxy S22 5G SM-S901E U - W - O - D - M Pin Mapping UART.isp
Samsung Galaxy S22 Ultra SM-S908U W - O - D - E Pin Mapping UART.isp
Samsung Galaxy S24 FE SM-S721B Pin Mapping UART.isp
Samsung Galaxy S25 5G SM-S931B - BE - B2 Pin Mapping UART.isp
SM8150 Qualcomm Snapdragon 860 Pin Mapping UART.isp

✅ 5. Added New / Updated ISP Pinouts
By Giovanni Lucas Da Paz
Motorola Moto G56 XT2529-1.isp
Motorola Moto G73 5G XT2237-1.isp
Motorola Moto G86 5G XT2527-1.isp
Oppo A5 CPH2727.isp
Samsung Galaxy A33 5G SM-A336M.isp
Samsung Galaxy A54 5G SM-A546E.isp
Samsung Galaxy A55 5G SM-A556E .isp
Samsung Galaxy M14 5G SM-M146B - Samsung Galaxy F14 5G SM-E146B .isp
Samsung Galaxy M54 5G SM-M546B.isp
Samsung Galaxy S25 5G SM-S931B - BE - B2.isp
SM6450 UFS.isp
SM7325 SDM 778G UFS.isp
SM7435 UFS.isp

━━━━━━━━━━━━━━━━━━━━

???? More powerful • More stable • More supported devices
